replaced door handle

i replaced my front passenger door handle today. it was fairly easy taking everything apart and replacing. putting it back together was the hard part. once i figured it out it was easy though. took about three hours. i can probably do it in an hour now. i changed it with the window up. 10mm wrench and ratchet, phillips head screwdriver, door panel tool and/or flathead screwdriver, silicon and grease. there are 8 bolts of one length and 8 bolts of another length, pay attention where you removed them from
- remove interior door panel and disconnect harnesses
- unbolt door panel which holds window tracks and motor.
- unsnap small rod on inside of handle and unbolt both bolts. handle comes out with a little pressure.
- install new handle opposite of disassembly
- put some grease on window tracks
- there are 2 poker chip sized stickers in the center left and center right of the door panel which are held on by adhesive. remove these stickers carefully youll reuse them. they cover holes in the panel
- do not completely tighten bolts, allow some play for alignment
- bolt the window motor back to the panel.
- bolt the top of both window tracks to the panel
- there are pegs centered on the right and left of the panel put the pegs in the holes on the door frame. youll use the holes the stickers covered to lift the panel
- install several of the top bolts to keep panel aligned.
- bolt the bottom on the window tracks to the panel remember to reinstall the circular spacers
- reinstall the remaining bolts.
- put silicon around sticker holes and replace stickers
- reattach harnesses and tighten bolts
- make sure window and handle operated properly
- reinstall panel

i took some pics, but dont have the patience to resize them. if someone wants to do it, PM me and ill email them to you then you can upload them.

02 3.5 SE Auto, Silver/blk lthr, Tecnafit SS lines, Nismo CAI, Unorthodox UDP, Stillen upper strut bar
tripod is offline
The Following 2 Users Say Thank You to tripod For This Useful Post:
Sponsored Links
Advertisement

#2 Old 03-26-2010, 02:09 AM
Tismoed 1 part at a time.

Tarik's Avatar

Join Date: Feb 2008
Location: Louisville, KY
Posts: 1,532
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Thanks: 1
Thanked 1 Time in 1 Post
iTrader: 0 reviews
Quote:
Originally Posted by tripod View Post
I replaced my front passenger door handle today. it was fairly easy taking everything apart and replacing. putting it back together was the hard part. once i figured it out it was easy though. took about three hours. i can probably do it in an hour now.
I changed it with the window up.
10mm wrench and ratchet,
phillips head screwdriver,
door panel tool and/or flathead screwdriver,
silicon and grease.

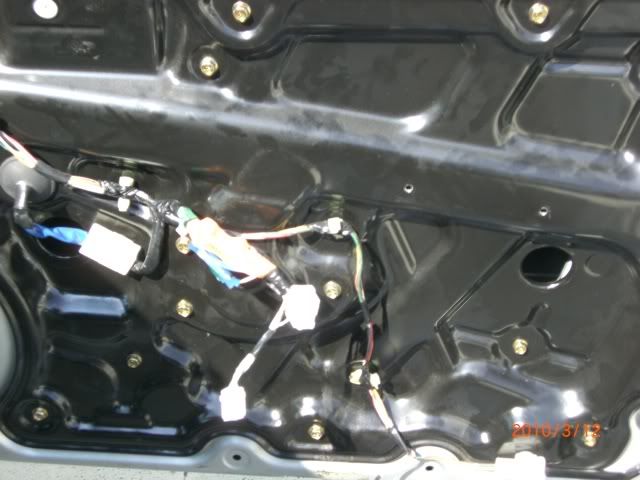

There are 8 bolts of one length and 8 bolts of another length, pay attention where you removed them from
- remove interior door panel and disconnect harnesses

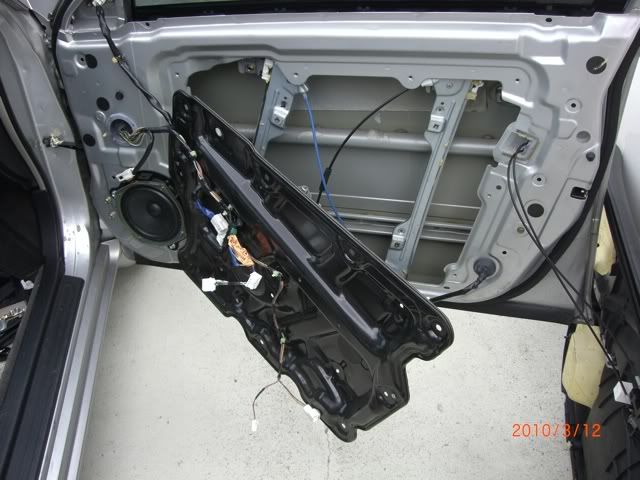

- unbolt door panel which holds window tracks and motor.

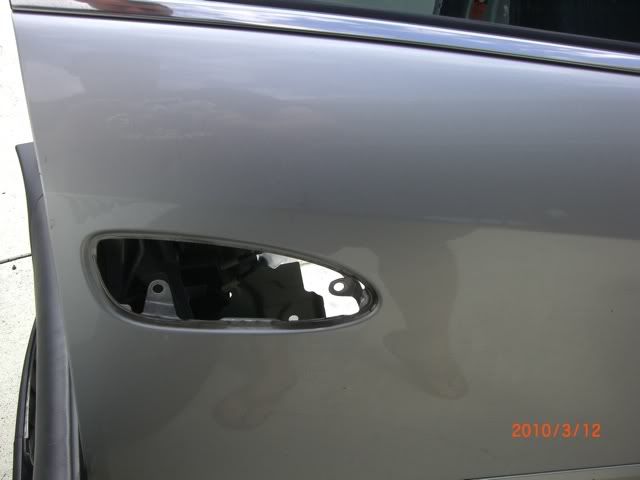

- unsnap small rod on inside of handle and unbolt both bolts. handle comes out with a little pressure.


- install new handle opposite of disassembly
- put some grease on window tracks
- there are 2 poker chip sized stickers in the center left and center right of the door panel which are held on by adhesive. remove these stickers carefully youll reuse them. they cover holes in the panel

- do not completely tighten bolts, allow some play for alignment
- bolt the window motor back to the panel.
- bolt the top of both window tracks to the panel
- there are pegs centered on the right and left of the panel put the pegs in the holes on the door frame. youll use the holes the stickers covered to lift the panel
- install several of the top bolts to keep panel aligned.
- bolt the bottom on the window tracks to the panel remember to reinstall the circular spacers
- reinstall the remaining bolts.
- put silicon around sticker holes and replace stickers
- reattach harnesses and tighten bolts
- make sure window and handle operated properly
- reinstall panel

i took some pics, but dont have the patience to resize them. if someone wants to do it, PM me and ill email them to you then you can upload them.
Updated with pics from tripod.



Quote:
wolfpacrules :
I am doing oil change and when I pulled out the oil filter, only about 1/3 Qt of oil came out.
Quote:
Sentinal: Ummm....are you trying to do an oil change through the filter???
Tarik is offline
The Following User Says Thank You to Tarik For This Useful Post:
#3 Old 03-26-2010, 03:08 AM
Registered User

UzumakiNaruto's Avatar

Join Date: Apr 2005
Location: honolulu, hawaii
Posts: 1,493
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Thanks: 13
Thanked 14 Times in 9 Posts
iTrader: 0 reviews
nice..i had to take off my door panel yesterday to fix something. pretty good to know.

Altima 2013 2.5 SL
Mods: HIDs 5000k low beams(XB35Bulbs),Racingline front strut bar, BT Led footwells front and back, CFL Truck lights, yellow film on parking lights, LED's license plate lights, LED Foglights 6000k 20watt and Installed led DRL's

Next mods : Mud guards, Front lip, and Short Ram intake.

Chemical Guys and Mothers products to keep it clean.

UzumakiNaruto is offline
#4 Old 03-26-2010, 12:08 PM
04-05 Pedal Insert

wild willy's Avatar

Join Date: Dec 2001
Location: Sharon, PA
Posts: 14,865
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Thanks: 0
Thanked 40 Times in 34 Posts
iTrader: 0 reviews
Just revived a thread I started about my broken door handle. It was the rear Pass side. I fixed it by removing the door pannel, cutting a slit in the plastic, repairing broken handle with plumbers putty from Lowes. Duct tape slit back up. Did not want to peel off plastic, it would have ruined it in my case....it was really stuck on there. However^^^^^^Tripod did the the right way......Mine was easy and cost about 2-3 dollars

*Bumper Plugs
Garage:
* 91 MR2 31K miles 4 Sale
*12 3.5 SR w/Tractor Transmission
*12 Quest SL
wild willy is online now
#5 Old 03-26-2010, 07:24 PM
Registered User

Join Date: May 2004
Posts: 763
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Thanks: 0
Thanked 2 Times in 1 Post
iTrader: 0 reviews
(Thread Starter)
thanks for posting the pics tarik

02 3.5 SE Auto, Silver/blk lthr, Tecnafit SS lines, Nismo CAI, Unorthodox UDP, Stillen upper strut bar
tripod is offline
#6 Old 03-26-2010, 09:45 PM
Tismoed 1 part at a time.

Tarik's Avatar

Join Date: Feb 2008
Location: Louisville, KY
Posts: 1,532
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Thanks: 1
Thanked 1 Time in 1 Post
iTrader: 0 reviews
no problem .



Quote:
wolfpacrules :
I am doing oil change and when I pulled out the oil filter, only about 1/3 Qt of oil came out.
Quote:
Sentinal: Ummm....are you trying to do an oil change through the filter???
Tarik is offline
#7 Old 03-27-2010, 12:00 AM
Low & Fast...

Blubird's Avatar

Join Date: Nov 2009
Location: The Wild Wild West!!!
Posts: 2,533
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Thanks: 0
Thanked 3 Times in 3 Posts
iTrader: 0 reviews
Nice job... i have to pull both front doors apart to see what rattling inside them...



06 SE VQ 5spd sleeper ll...

Blubird is offline
#8 Old 02-11-2011, 10:18 PM
Registered User

Join Date: Nov 2009
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
iTrader: 0 reviews
Thumbs up Driver side door handle broken

Thanks for the photos and instructions. The exterior driver-side door handle froze and broke off when trying to open. Have part on order. Looks doable.
Old Guy is offline
#9 Old 02-12-2011, 12:09 AM
Tismoed 1 part at a time.

Tarik's Avatar

Join Date: Feb 2008
Location: Louisville, KY
Posts: 1,532
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Thanks: 1
Thanked 1 Time in 1 Post
iTrader: 0 reviews
3rd gen Altima door handels are poorly designed. good luck man and make sure to take memory or physical pics to aid in reassembly.



Quote:
wolfpacrules :
I am doing oil change and when I pulled out the oil filter, only about 1/3 Qt of oil came out.
Quote:
Sentinal: Ummm....are you trying to do an oil change through the filter???
Tarik is offline
#10 Old 02-27-2011, 08:44 PM
Registered User

Join Date: Nov 2009
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
iTrader: 0 reviews
Driver-side exterior door handle replacement done.

This job is straight forward. Just keep track of which nuts and bolts go where when disassembling the inside door panels. The one issue is that the inner-most bolt holding the handle to the door frame is not accessible. I could not find a ratchet wrench adapter combination to get at it and there is no access hole through the inner part of the door frame. Solution. Drill a hole through the inner door frame to gain access. Yeah it sounds crude, but hey, I can't figure out another way to access the bolt. This job is also great for your quads since you will spend a couple of hours on your knees leaning into the inside of the door.
Old Guy is offline
#11 Old 05-06-2011, 08:20 PM
Registered User

dvs1's Avatar

Join Date: Jul 2002
Location: Columbus, GA
Posts: 194
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 0
Thanked 1 Time in 1 Post
iTrader: 0 reviews
Quote:
Originally Posted by Old Guy View Post
Solution. Drill a hole through the inner door frame to gain access. Yeah it sounds crude, but hey, I can't figure out another way to access the bolt. This job is also great for your quads since you will spend a couple of hours on your knees leaning into the inside of the door.
Assuming you have gotten to this point. I must stress, unclip & unseat the rod secured with the pink fastener before proceeding. I bent the rod & wasted an hr trying to get it "straight".
Push the handle out (unclip it from the door) from inside of the door. It will leave just enough space to use a ratcheting closed-end box wrench to loosen the last bolt (the 2nd key lock bolt) from the outside of the door. It will not seem like enough space, but I did it with a closed-end without ratchet. The old handle can easily be lifted out & then replaced. Put the lock bolt back in place & tighten it. Pop the new handle in place. The rest is a reversal of removal. I started to cut & had an epiphany.


VQ5spd>AEM>KYB>Akebono>Centric>Falken>Obx>RL>NWP>MB>3M,XM>OE Owner
dvs1 is offline
#12 Old 05-07-2011, 01:04 AM
Registered User

Join Date: Nov 2009
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
iTrader: 0 reviews
Congratulations! When you say pushing the door handle out, do you mean like you are opening the door? Did you reach the inner bolt by putting the wrench and your hand inside the door frame? Impressive piece of automotive work.
Old Guy is offline
#13 Old 03-08-2012, 11:22 PM
BT
Super Modder

BT's Avatar

Join Date: Jan 2008
Location: Washington
Posts: 5,282
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Thanks: 5
Thanked 61 Times in 48 Posts
Garage
iTrader: 16 reviews
My handle snapped on my car about 2 weeks ago and I was going to use the one off of the spare door, but one of the metal inserts in the handle spun out

Anyways...about that inner bolt on the handle. There is a way to access it fairly easily with a socket and ratchet with extension. There is an access hole covered by a piece of clear plastic on the door on the right side of this photo. The plastic piece that is inside of the door is flexible enough to move out of the way.



Frankensteined 2002/3/4 3.5SL
QR to VQ swap



Other Pics
My NC Garage
My Feedback Thread...
BT is offline
#14 Old 03-09-2012, 03:09 AM
Registered User

black2.5alti's Avatar

Join Date: Dec 2010
Location: Florida
Posts: 4,208
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 7
Thanked 40 Times in 40 Posts
iTrader: 0 reviews
What plastic piece are you talking about? I'll be replacing my door handle before too long.

2005 Nissan Altima 2.5s
black2.5alti is offline
#15 Old 03-09-2012, 03:17 AM
Registered User

HuskerAltima87's Avatar

Join Date: Sep 2011
Location: Lincoln, NE
Posts: 217
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
Garage
iTrader: 0 reviews
Quote:
Originally Posted by black2.5alti View Post
What plastic piece are you talking about? I'll be replacing my door handle before too long.
There is supposed to be a plastic "splash shield" or w/e you want to call it that covers around the window motor and track and stuff behind the door trim panel.

Mine didn't have that either. And I've had my car for over 4 years and nothing has happened.
