Throttle Body removal

I did this when removing the intake manifold, At first I thought it was the
throttle body gasket that was bad. But it continued after I replaced the gasket.
Then I sprayed carb cleaner to intake to head area, the RPMs went up.
The good thing the throttle body is easy to remove.
Tools need:
--8mm,10mm-19mm socket set (deep and shallow)
In both 3/8 and 1/4. 4MM-14mm deep and shallow
ALSO SOME 1/4 in, 5/16 sockets for new clamps
-1/4 ans 3/8 Universal joints and Universal sockets
-Vise grips
- 6mm Allen socket
- ratchets,
- toque wrench
- PB Blaster
- 1/4, 3/8 extensions
-screwdrivers and picks
-New gasket sets
-Gasket Scaper

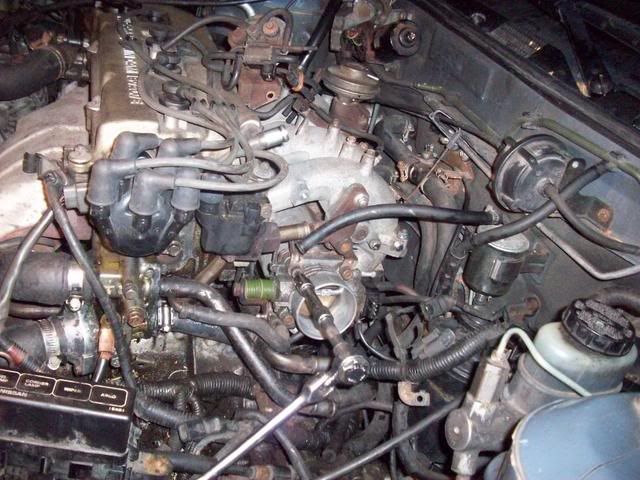

This is how it looks before you take it part, it should look the same,


Disconnect the negative battery cable
Remove the hose that goes to thermostat housing



After removing the starter remove the hose( I removed it ) If you do remove the starter then it easy to disconnect, But I don’t bother with that crap any more. So would cut it, and replace that section with new piece of hose.


Remove the TPS wiring with small screwdriver and pick,
Remove the link, looks like swab,

Now loosen 4mm 6mm Allen bolts with Allen socket, in crisscross pattern

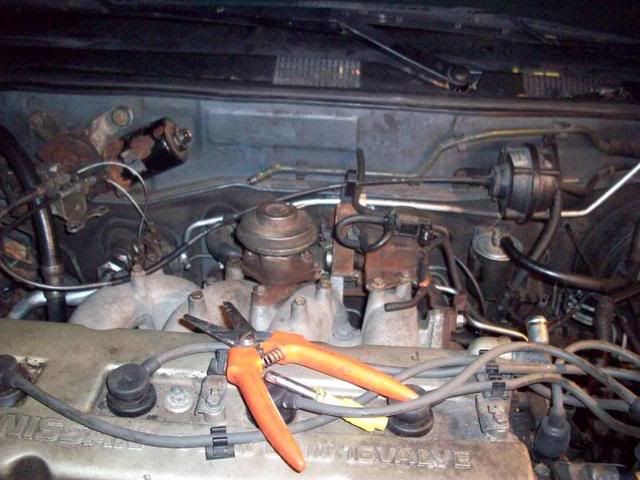

This what I use to cut hoses, ha ha I took from my mom LOL.

Now remove the FOUR 6mm bolts
There is vac hose, that needs to be removed
That bracket I bend the ears so it will not be hard to install the new gasket



Clean the gasket mating surfaces, and put the new gasket and toque
the bolts to specs , to 12 ft pound
http://i170.photobucket.com/albums/u...7/100_0937.jpg

Used to own a 93' Altima KA24DE!
Revenge feels so good!
Nissan Tech
Fix it now! When it is right, not when it is very $$$ to fix!!!

Last edited by Mr.Nissan; 12-14-2008 at 07:19 PM.
Mr.Nissan is offline
Sponsored Links
Advertisement

#2 Old 01-02-2008, 02:40 AM
Registered User

Mr.Nissan's Avatar

Join Date: Nov 2007
Location: CHICAGO
Posts: 254
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 1
Thanked 3 Times in 3 Posts
iTrader: 0 reviews
(Thread Starter)
If I miss anything, please tell me. Thank you.

Used to own a 93' Altima KA24DE!
Revenge feels so good!
Nissan Tech
Fix it now! When it is right, not when it is very $$$ to fix!!!
Mr.Nissan is offline
#3 Old 01-02-2008, 03:19 AM
white on rice

98gle#2's Avatar

Join Date: Jan 2005
Location: NJ/PA
Posts: 1,565
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 3
Thanked 0 Times in 0 Posts
iTrader: 0 reviews
i would just metion to clean the gasket mating surfaces. another writeup well done!

White 1998 Altima GLE
Injen wai
OBX header & cat-back
Some subs and amps
Black '01 headlights
Powerslots & hawks
Spec-V Rims powdercoated black
Tokico struts
S/T springs and rsb
FSTB

Quote:
Originally Posted by Red Lion
I'm glad SOMEBODY finally said it. And of course it'd be YOU
Quote:
Originally Posted by Eclypse
Considering you dont have a lift and I'm picturing this thing falling on your face, you may want to clearly understand what is involved here.
